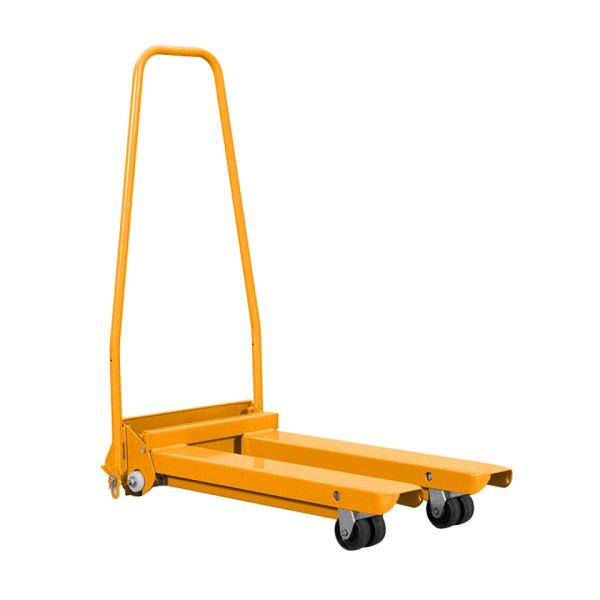

Mechanic Lifter MX series
▲ To replace hydraulic pallet truck when under 300kg load.
Pallets are simply lifted by pulling the handle backwards (the leverage principle).
Saves a lot of time as no pumping is required.
▲ Extremely low weight, about 25kg.
Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.
▲ Foldable.when not in use, it can be hung up on a hook on the wall.
▲ No hydraulic pump to repair, no oil can leak out no seals to replace.
▲ Ideal for grocery stores, all kind of small stores, pharmaceutical industry, drugstores, offices, schools, hospitals etc.
| Model |
|
MX0608 |
MX0610 |
| Capacity |
(kg) |
300 |
300 |
| Lift Height |
(mm) |
145 |
145 |
| Lowered Height |
(mm) |
85 |
85 |
| Fork Width Outside |
(mm) |
420 |
420 |
| Fork Length |
(mm) |
800 |
1100 |
| Width of Single Fork |
(mm) |
120 |
120 |
| Total Height |
(mm) |
200/1160 |
200/1160 |
| Steer Wheel |
Dia.xWid (mm) |
Ø80x40 |
Ø80x40 |
| Load Wheel |
Dia.xWid (mm) |
Ø80x40 |
Ø80x40 |
| Overall Size |
LxW (mm) |
1030x420 |
1330x420 |
| Net Weight |
(kg) |
25 |
30 |
