Product Name

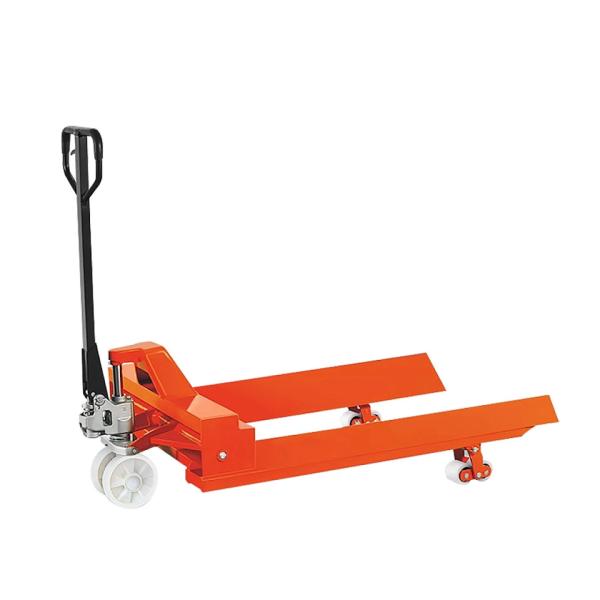

ACR Roll hand pallet truck
Rhombus fork design, used for handling cylindrical goods of various diameters.Commonly used in paper making, printing, packaging, textile, building materials and other industries.Unique diamond-shaped fork design to meet the needs of handling cylindrical goods of various diameters
- Compact structure, efficient and fast
- Thickened steel, stronger load-bearing capacity
- Made of high-quality thickened steel plate, the car body is firm and durable
- The welding point is smooth and reliable, making it safer to use
- High-quality thickened steel, integrally rolled by integral stamping technology
Product Specifictions
| Feature |
Unit |
ACR25A |
ACR25B |
ACR25C |
ACR25D |
| Load Capacity |
kg |
2500 |
2500 |
2500 |
2500 |
| Applicable Coil Diameter |
mm |
Φ400-600 |
Φ600-800 |
Φ800-1200 |
Φ1200-1600 |
| Fork Overall Width |
mm |
760 |
850 |
1000 |
1150 |
| Steering Rear Wheel |
mm |
Φ200X50 or Φ180X50 |
Φ200X50 or Φ180X50 |
Φ200X50 or Φ180X50 |
Φ200X50 or Φ180X50 |
| Load Front Wheel (Single) |
mm |
Φ78X100 |
Φ78X100 |
Φ78X100 |
Φ78X100 |
| Load Front Wheel (Dual) |
mm |
Φ78X70 |
Φ78X70 |
Φ78X70 |
Φ78X70 |
| Fork Overall Length |
mm |
800/900/1000/1100/1150/1220 - Max 1500 |
800/900/1000/1100/1150/1220 - Max 1500 |
800/900/1000/1100/1150/1220 - Max 1500 |
800/900/1000/1100/1150/1220 - Max 1500 |
| Self Weight |
kg |
135 |
150 |
155 |
175 |
|
|
|
