    Sinolift CDD16M And CDD20M Electric Stackers Made In China

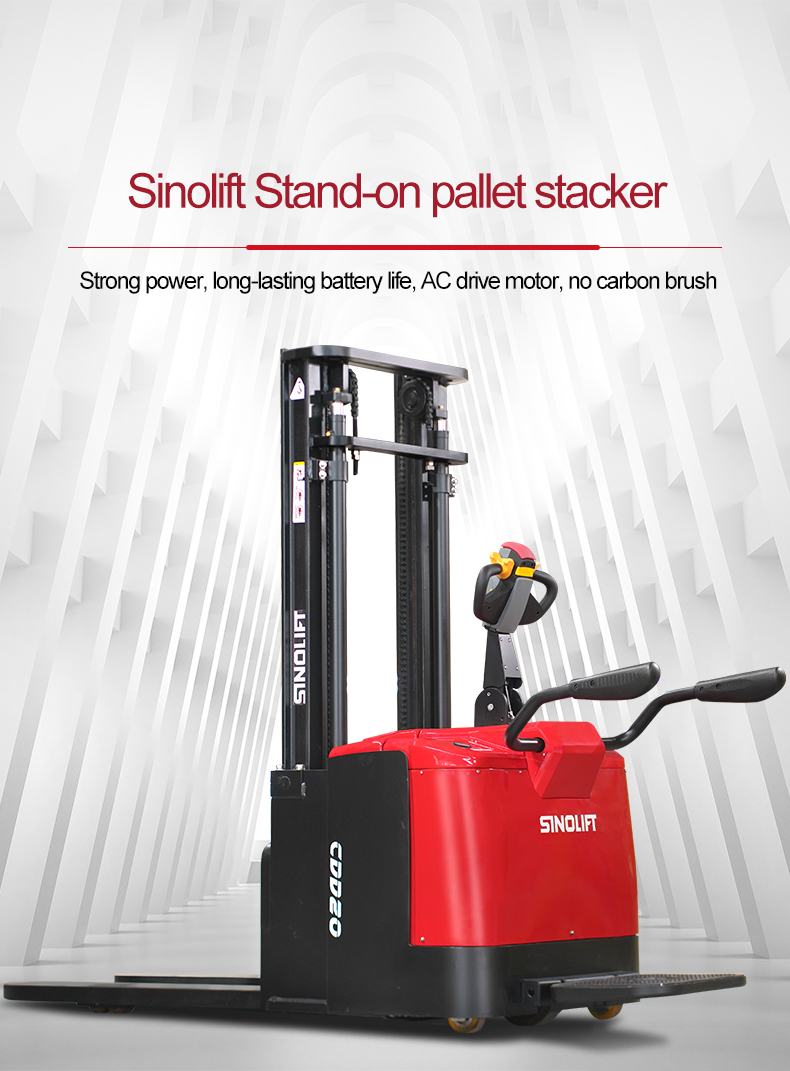

    Sinolift CDD16M and CDD20M pedestrian-powered electric stackers made in China

    The compact CDD16M and CDD20M series stackers are high-performance pedestrian electric stackers designed for efficient material handling in warehouses, factories, and confined spaces. Ideal for short-distance transport and precise pallet stacking, these stackers feature durable polyurethane load wheels, regenerative braking, and an AC traction motor for smooth and reliable operation. With safety enhancements like a belly button switch and EPS electric power steering, they ensure operator safety and ease of use in tight areas. Additionally, the quick battery change system and battery discharge indicator minimize downtime, making them a cost-effective solution for modern logistics and storage needs.

    dentification1.1Manufacture's type designationSINOLIFT
    1.2ModelCDD16MCDD20M
    1.3Power TypeElectric
    1.4Type of OperationStand-on
    1.5Steering ModeElectric Power Steering
    1.6Load capacity/Rated loadQkg16002000
    1.7Load Center DistanceCmm600600
    1.8Wheelbaseymm15001500
    Weight2.1Total Weight (with battery)kg13001350
    2.2Axle Load(laden):Drive side/Load-bearing sidekg1115/17851285/2065
    2.3Axle Load(unladen):Drive Side/Load-bearing sidekg947/353985/365
    Dimension3.1Overall Length (Pedal Retracted/Expanded)L1/L2mm2210/26452210/2645
    3.2Overall WidthW1mm880880
    3.3Lift Heighth1mmRefer to mast parameter
    3.4Lowered Mast Heighth2mmRefer to mast parameter
    3.5Extended Mast Heighth4mmRefer to mast parameter
    3.6Free Lift Heighth5mmRefer to mast parameter
    3.7Fork Dimensionl/e/smm1220×185×551220×185×55
    3.8Width of Forkb2mm560/685560/685
    3.9Min.Fork Heighth3mm8585
    3.1Ground Clearance at Center of Wheelbase (Min)m1mm3030
    3.11Height of Operating Handle bar(Min./Max)h14mm1000/15501000/1550
    3.12Turning RadiusWamm1755/22001755/2200
    3.13Min. Aisle width for pallets 1000×1200 (Pedal Retracted/Expanded)2630/30852630/3085
    3.14Min. Aisle width for pallets 800×1200 (Pedal Retracted/Expanded)2555/30102555/3010

    cdd20_01.jpgcdd20_03.jpgcdd20_04.jpgcdd20_05.jpgcdd20_06.jpgcdd20_07.jpgcdd20_08.jpgcdd20_10.jpgcdd20_11.jpgcdd20_12.jpgcdd20_13.jpgcdd20_15.jpgcdd20_17.jpg
