    Sinolift CPD10/15W Electric Stand-on Counterweight Stacker

    Ask Lasest Price
    Brand Name : SINOLIFT
    Model Number : CPD10/15W
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 1000 sets/mouth
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Sinolift CPD10/15W Electric Stand-on Counterweight Stacker

    Product Description
    The SINOLIFT counterbalanced Electric Stacker is the ideal combination of forklift and truck - it is best suited for cargo handling tasks where straddle legs or outriggers cannot work.
    Storage racks and sections with bottom rails can restrict forward reach, and counterbalanced electric stackers are designed to address this limitation.
    Electric Stackers are ideal for loading and unloading trucks or positioning materials and goods where shelving or machinery may have some sort of bottom interference. With no protruding legs, the Electric Stacker allows unobstructed access to the work area.
    The SINOLIFT counterbalanced Electric Stacker is your versatile and cost effective alternative to sit-down forklifts, Electric Stacker providing you with an efficient work cycle at half the operating cost of a walker.
    modelCPD10wCPD15w
    Power typeelectricelectric
    Driving styleStand-onStand-on
    Steering methodElectronic steeringElectronic steering
    Rated loadQkg10001500
    Load center distanceCmm500500
    Front overhangXmm130130
    WheelbaseYmm13001450
    Weight (including battery)kg18301850
    Axle load at full load, drive side/load sidekg1043/7871055/795
    Axle load at no load, drive side/load sidekg340/2490400/2950
    Vehicle length (pedal stowed/expanded)L1/L2mm2730/31702880/3320
    Frame length (pedal stowed/unfolded, excluding forks)mm2245/18202245/1820
    Vehicle widthW1/W2mm880/1030880/1030
    Fork sizel/e/smm1070x100x401070x100x40
    Fork adjustment widthmm220-700220-700
    Fork frame widthb2mm737737
    Minimum ground clearancem1mm5050
    Minimum/maximum height of handle lever in operating positionh14mm1000/14501000/1450
    Turning radius (pedal retracted/expanded)Wamm1560/20001710/2145
    Right-angle aisle width (tray 1000x1200) (pedal retracted/unfolded)Astmm3195/36353345/3780
    Right-angle aisle width (tray 800x1200) (pedal retracted/expanded)Astmm3165/36053315/3750
    Front-wheel sizemmφ210*85φ210*85
    Balance wheel sizemmφ115*55φ115*55
    Drive wheel sizemmφ230*75φ230*75
    Number of wheels, front/rear (x=driving wheels)2/1x+22/1x+2
    Driving speed (full load/no load)Km/h5/64.5/5
    Lifting speed (full load/no load)mm/s80/11080/110
    Lowering speed (full load/no load)mm/s140/120140/120
    Maximum gradeability (full load/no load)%4432444324
    Service brake typeElectromagneticElectromagnetic
    Parking brake typeElectromagneticElectromagnetic
    Drive motor power (AC) S2-60minkW1.51.5
    Lifting motor power (DC) S3-15%kW2.22.2
    Battery voltage/nominal capacity K5V/Ah24/21024/210
    Battery weightkg188188
    Controller brandCURTISCURTIS
    Controller model1232E1232E
    Noise leveldB7070

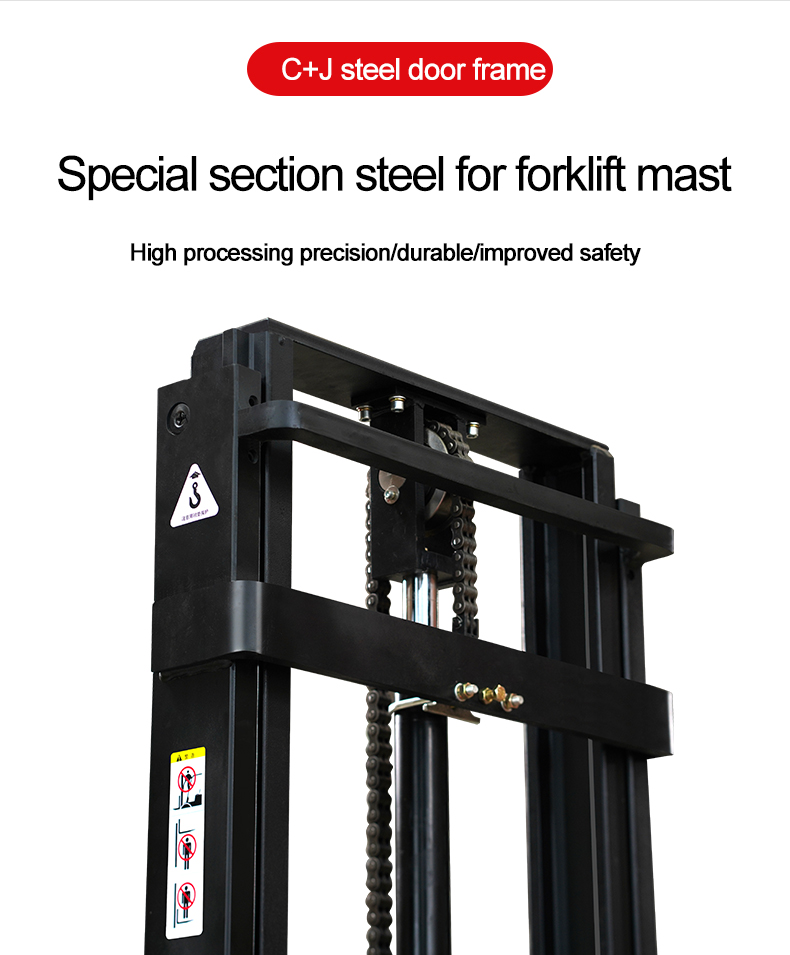

    Detailed Images
