    Sinolift CQD25A Electric Reach Truck

    Ask Lasest Price
    Brand Name : SINOLIFT
    Model Number : CQD25A
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 1000 sets/mouth
    Delivery Time : 15 days
    • Product Details
    • Company Profile

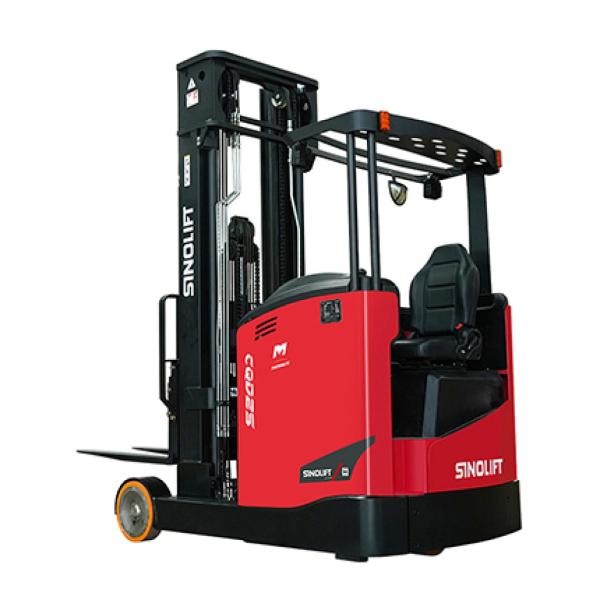

    Sinolift CQD25A Electric Reach Truck

    CQD25A Movable Mast 2.5t Electric reach truck
    CQD25A Mobile Door Frame 2.5t Electric Reach Trucks, Battery Powered Reach Trucks
    The CQD series of reach trucks offer a new dimension of efficiency, energy savings and performance.
    SINOLIFT's intelligent system reduces speed when turning, recognizes whether the operator is pulling into or out of a curve, analyzes steerer tire angle, driving direction and steering direction, and automatically adjusts speed and acceleration for maximum safety and performance.
    Each reach truck is configured to provide the best chassis/battery/mast combination according to the requirements of the application.
    The CQD series has many standard configuration details that enhance safety and productivity when the equipment is in use:
    Wear-free support arm brakes
    Tilting cargo forklift
    High travel speed (up to 10 km/h)
    Electronic 180° or 360° steering
    Support arm rollers with protective cover
    Lateral battery removal via rollers
    Battery feeding for easy maintenance
    Manufacturer Brand SINOLIFT
    Model     CQD25A
    Power Type     Electric
    Type of Operation     Seated
    Steering Mode     Electric Power Steering
    Load Capacity/Rated Load Q kg 2500
    Load Center Distance c mm 600
    Load Distance. center of drive axle to fork x mm 160
    Wheelbase y mm 1600
    Total Weight (with Battery)   kg 3800
    Axle Load (laden):Drive side/Load-bearing Side   kg /
    Axle Load (unladen):Drive side/Load-bearing Side   kg /
    Overlength (Mast Retracted) L1 mm 2470
    Frame Length (Without Fork) L7 mm 2040
    Overall Width b2 mm 1270
    Height of Overhead Guard h6 mm 2160
    Lift Height h3 mm 6500
    Height with Mast Lowered h1 mm 2856
    Height with Mast Extended h4 mm 7530
    Free Lift Height h5 mm 2260
    Fork Dimension I/e/s mm 1070/122/40
    Type of Fork Carriage A, B Class     2A
    Fork Spread Width   mm 250
    Fork Carriage Width   mm 820
    Fork Tilt (Forward/Backward) a/B ° 2/4
    Distance of Straddle Leg b3 mm 924
    Reach Distance L4 mm 650
    Height of Straddle Leg h6 mm 310
    Ground Clearance at The Center of Wheelbase (Min) m1 mm 80
    Turning Radius Wa mm 1915
    Aisle Width for Pallets 1000 x 1200 Ast mm 2952
    Aisle Width for Pallets 800 x 1200 Ast mm 2997
    Tyre Type     Polyurethane
    Tyre Size (Front)   mm Ø350X100
    Tyre Size (Auxiliary Wheel)   mm Ø180X55
    Tyre Size (Driving Wheel)   mm Ø343X140
    Wheels Quantity, front/rear (x=Diving Wheels)     2/1x+2
    Traveling Speed (laden/unladen)   Km/h 10/10.5
    Llfting Speed (laden/unladen)   m/s 0.35/0.6
    Lowering Speed(aden/unladen)   m/s 0.5/0.5
    Max. Gradient Performance S2 5min (laden/unladen)   % 10/15
    Service BrakeType     Hydraulic
    Parking Brake Type     Electromagnetic
    Drive Motor Rating (AC) S2-60min   kW 6.5
    Lift Motor Rating (AC)S3-15%   kw 13
    Battery Voltage/Capacity K5   V/Ah 48/600
    Battery Weight   kg 650
    Controller Brand     CURTIS
    Controller Model     2-1234SE+1222
    Sound Level Driver's Ear According to EN 12053   dB 70
    Battery Change     Side Roll Out
