Brand Name : | Sinolift |
Model Number : | NAG |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T, L/C, D/A, D/P, Western Union |
Supply Ability : | 1000 sets/mouth |
Delivery Time : | 15 days |

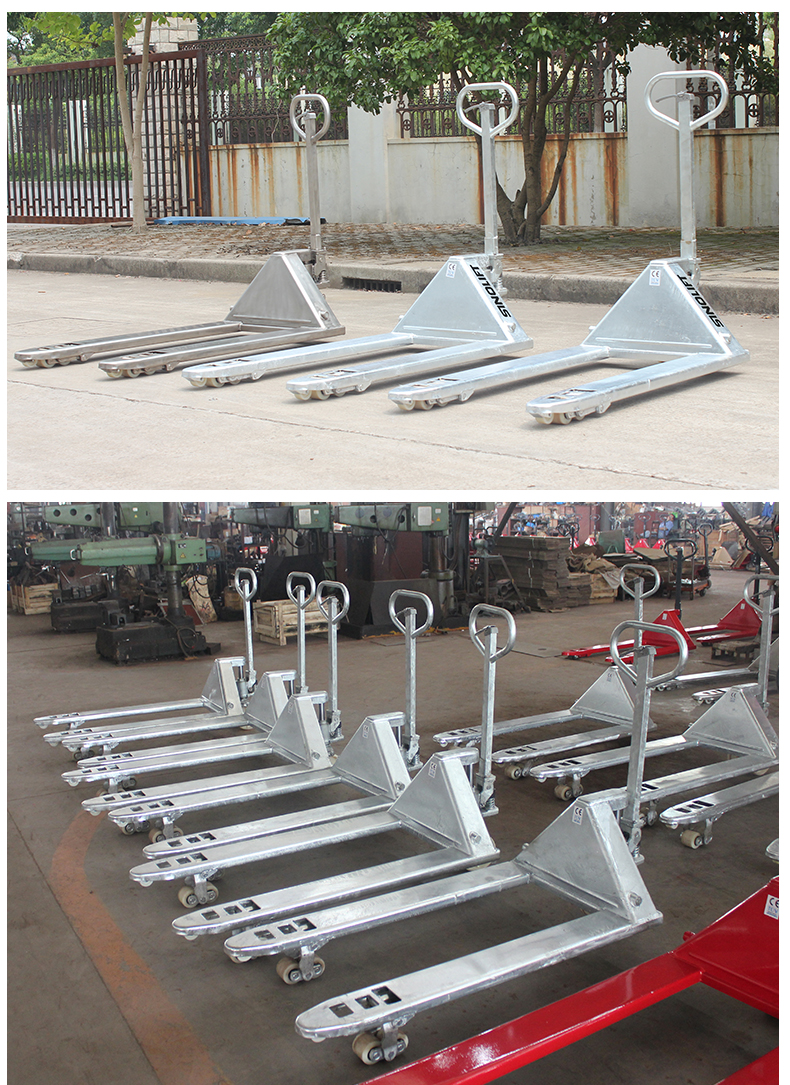

The galvanized and stainless steel hand pallet trucks are designed for excellent corrosion resistance, making them ideal for use in humid environments or areas where high hygiene standards are required.
· Sturdy pallet truck featuring a tray head and reinforced side sills.
· Hot-dip galvanized finish for enhanced long-term durability.
· Equipped with stainless steel bearings, axles, screws, and bolts.
Model | NAG Series | |
Rated Capacity | kg | 5000/2000/2500/3000/5000 |
Width over forks | mm | 460/520/540/550/680/685 |
Steering Wheel | mm | 180x62 NYLON or PU |
Fork Length | mm | 810/980/1070/1150/1220 |
Load Wheel | mm | Φ78*70(Tandem) |
Max.Fork Height | mm | 200 |
Min.Fork Height | mm | 80 |
Overall Length | mm | 1500 |
Fork Width | mm | 150 |
Width inside forks | mm | 160,220,240,250 |
Under Clearance | mm | 40 |
Strokes | 50 | |
Over Height | mm | 1200 |
Steer Angle | 230deg | |
Drive Unit Length | mm | 370 |
Weight | kg | 78 |
![]() |
