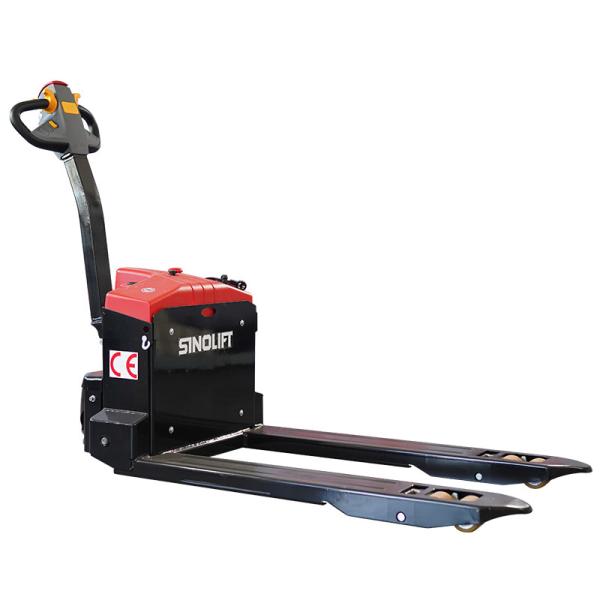

    3000kg AC Motor Electric Pedestrian Pallet Trolley Truck

    Ask Lasest Price
    Brand Name : Sinolift
    Model Number : EPT20-15ET / EPT20-20ET / EPT20-30ET
    Certification : ISO9001/ CE
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Set/Month
    Delivery Time : 15 weeks
    Price : 1500-1600 usd / set
    • Product Details
    • Company Profile

    3000kg AC Motor Electric Pedestrian Pallet Trolley Truck

    Feature:


    1.Creep speed.

    The Sinolift allows the truck to manoeuvre in confined areas with the tiller in an upright position, normally one of the braking zones. By activating the Creep speed button, easily accessible by either hand, a top speed of 1.5 km/h is set for the truck. The operator can then freely operate and easily manoeuvre the truck on a tail-lift while loading or unloading.

    2.Power and Performance.

    Curtis solid state controllers provide smooth acceleration and seamless directional control. Its Regenerative Braking feature adds energy back to the battery to improve efficiency.With AC Power, you will benefit from faster acceleration,more torque, higher efficiency, and lower maintenance

    costs due to the brush-less design.

    3.Long tiller & low mounting.

    A long tiller arm with a low mounting point ensures a large safety clearance between operator and chassis, as well as providing light steering

    for sharp corners.


    Specification:


    Model designation EPT20-15ETEPT20-20ETEPT20-30ET
    Drive Unit BatteryBatteryBattery
    Operator Type pedestrianpedestrianpedestrian
    Load capacityQ (kg)150020003000
    Load centerc (mm)600600600
    Load distancex883/946883/946877/940
    Wheelbasey1202/12611202/12611206/1264
    Service weight (Incl. battery)kg164200400
    Axle loading, laden driving side/loading sidekg536/1128536/11282235/1165
    Axle loading, unladen driving side/loading sidekg124/40124/40263/137
    Tyre type,operator side/ load side PU/PUPU/PUPU/PU
    Tyre size,driving wheels (Diameter x width)mmΦ210x75Φ210x75Φ250x80
    Tyre size,loading wheels (diameter x width)mm2 X Φ80x602 X Φ80x604 X Φ85x65
    Wheels, number operator/load side (x=drive wheels)mm1 x/4(1x/2)1 x/4(1x/2)1 x/4(1x/2)
    Track width, front,driving sideb10 (mm)448448520
    Track width, rear,loading sizeb11 (mm)410(535)410(535)482(597)
    Lift heighth3 (mm)115115115
    Height drawbar in driving postion Min./Max.h14(mm)750/1170750/1170750/1200
    Fork height, loweredh13 (mm)808085
    Overall lengthl1 (mm)163816381810
    Length to face of forksl2(mm)488488590
    Overall widthb1/ b2 (mm)560(685)560(685)694
    Fork dimensionss/ e/ l (mm)50/150/115050/150/115060/160/1220
    Fork spread, min/ maxb5 (mm)560(685)560(685)560(685)
    Ground clearance,center of wheelbasem2(mm)303031
    Aisle width, 1000×1200 pallet crosswaysAst (mm)173917391840
    Aisle width, 800×1200 pallet crosswaysAst (mm)193919391950
    Outer turning radiusWa (mm)148514851780
    Travel speed, laden/ unladenkm/ h4/4.54/4.54/4.5
    Lifting speed, laden/ unladenm/ s0.027/0.0380.027/0.0380.027/0.038
    Lowering speed, laden/ unladenm/ s0.059/0.0390.059/0.0390.059/0.039
    Maximum gradeability, laden/ unladen S2 5 min.%5/165/166/10
    Service brake Electromagnetic
    Drive motor rating S2 60 min.kw0.650.751.5
    Lift motor rating at S3 15%kw0.840.841.5
    The maximum allowed size batterymm265*185*215265*185*215330*170*215
    Battery voltage/ rated capacity (5h)V/ Ah2x12/654x12/302x12/100
    Battery weightkg2x22.54x142x36
    Type of drive control DCDCAC
    Steering type Mechanical
    Sound level at operator's eardB (A)70
