    PFZ Series All Welded Steel Construction Light Duty Hydraulic Stacker Capacity 600Kg

    Ask Lasest Price
    Brand Name : Sinolift
    Model Number : PFZ
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 sets/mouth
    Delivery Time : 15 days
    • Product Details
    • Company Profile

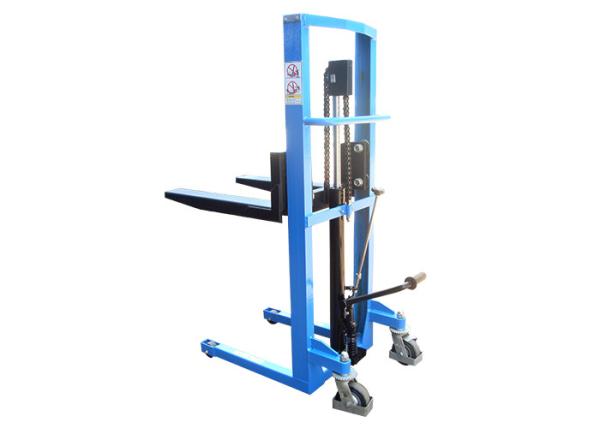

    PFZ Series All Welded Steel Construction Light Duty Hydraulic Stacker Capacity 600Kg

    Feature:


    Stacker is main active transfer machine in all transfer jobsites. And it suits transfer on upper floor which has load limiting. You can operate of the drive and the lift easily in safety by Centralized control hand device or Electric Device. Series of EZF is straddle stacker. It can handle any light duty pallets.


    ▲Economical and attractive.

    ▲Features removable chrome platform for operations requiring forks.

    ▲Manual hydraulic pump mechanism yields 3/4" of platform travel per stroke.

    ▲Non-slip chain is used for accurate positioning.

    ▲Units roll easily on 2 rigid, 2 swivel polyurethane casters and includes a foot operated brake for extra safety.

    ▲All welded steel construction with chrome platform and uprights.

    ▲Forks measure 4-1/2"W. x 2-1/2"H. -- fork length is same as platform length.

    ▲Not for use with pallets.

    ▲FOB Shipping Point.


    Specification:


    ModelPFZ6150PFZ8150
    Max.Capacitykg600600
    Operation modeManul
    Load Centremm300
    Max.Fork Heightmm1200(1500)
    Min.Fork Heightmm90(universal front wheel)
    Fork Size(L×W)mm700×120
    Front Wheel DiametermmΦ80Φ80
    Rear Wheel DiametermmΦ150Φ150
    Overall Size(L×W×H)mm980×600×1500980×620×1580
    Net Weightkg115128
