    DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg

    Ask Lasest Price
    Brand Name : Sinolift
    Model Number : DT500
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5000 sets/mouth
    Delivery Time : 15 days
    • Product Details
    • Company Profile

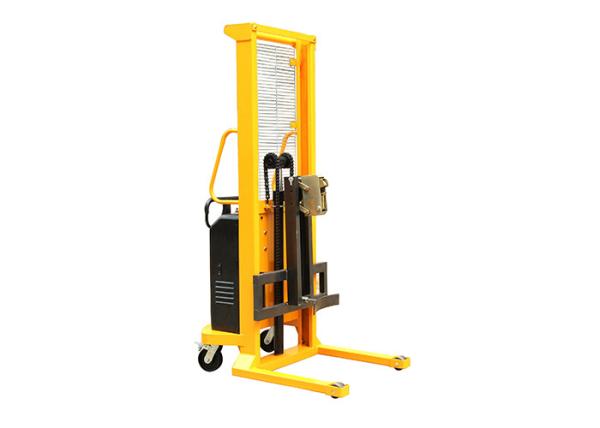

    DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg

    Feature:


    Integrated functions of transporting, stacking and weighting.

    Use good-quality hydraulic pump unit to provide strong driving force; maintenance-free battery provides durable power supply.

    Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe.

    Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum;

    Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm

    Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.

    Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.

    With electronic weighting device.


    Specification:


    ModelDT500
    Rated Capacitykg500
    Max. Lifting Heightmm1600
    Acceptable Drum Typesteel ,plastic,fiber
    Powered Liftingyes/noyes
    Drum Tilting (electric/manual)without dumping device
    With Weighing Scaleyes/noyes
    Lifting Speedmm/s120
    Load Rollers SizemmØ80x55
    Steering Wheel SizemmØ150x50
    Size Between Legs(Inner/Outer)mm640/800
    Leg Lengthmm630
    Turning Radiusmm1750
    Lifting Motor PowerKW1.5
    BatteryV/AH12/120
    Charger for StackerV12
    Charger for Weighing ScaleV6
    Overall Size(LxWxH)mm1200x850x2060
    Net Weightkg228
