    YLH01 Full-electric Single Shop Crane Loading Capacity 2 Ton

    Ask Lasest Price
    Brand Name : Sinolift
    Model Number : YLH
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 5000 sets/mouth
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    YLH01 Full-electric Single Shop Crane Loading Capacity 2 Ton

    Product Description

    Electric walking, hydraulic lifting, hydraulic forward movement, hydraulic forward extension, multifunctional integrated counterbalanced all-electric single-arm crane, humanized frame design, height and angle can be adjusted freely according to your own situation, convenient to use, time-saving and labor-saving to improve work effectiveness.
    Joint venture hydraulic pump station with strong power and long-lasting maintenance-free battery power in Varta
    High-quality oil cylinder, heavy-duty design, easy and convenient adjustment of the boom distance through the oil cylinder
    Equipped with a safety valve, can be folded and packaged in a small size
    It is suitable for operation in areas where the forklift is not easy to enter.

    modelYLH01
    Selfweight725kg
    Counterweight600kg
    Battery parameters12V/120Ah*2
    Battery size (length * width * height)406*172*211 (mm)
    Battery weight30*2kg
    Lifting motor2.2kw
    Drive motor power0.75KW
    Walking speed5km/h
    Vehicle size (length * width * height)2200*1015*1950(MM)
    Front wheelD150*70
    Driving wheelD250*80

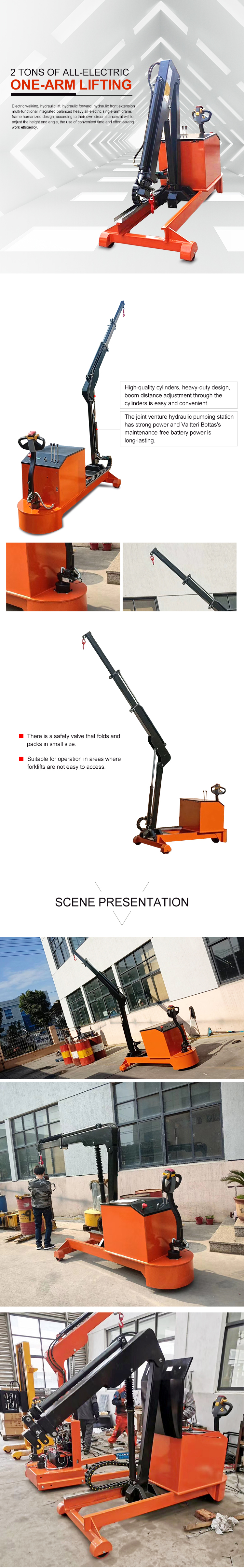

    Detailed Images

    YLH01 Full-electric Single Shop Crane Loading Capacity 2 Ton
